Introducing the Pinxel-II microneedle RF machine, a versatile device that combines microneedle RF and fractional RF technologies, providing safe and effective treatment for all skin types. Its controllable treatment depth, precision motors, energy stability, comfort-enhancing cooling heads, and compatibility with other machines make it an efficient solution for various body treatments. With specialized heads for microneedling and fractional radiofrequency treatments, it offers both invasive and non-invasive options for a variety of skin concerns.
Specifications | |
System Type | Micro Needle RF |
Fractional RF | |
Frequency | 2MHz |
Total RF Treatment Level | Up to Level 10 |
Dual Operation Mode | Fractional RF Micro-needle |
Fractional RF Sub-lative | |
Max. Energy | 50W |
Disposable Tip | Micro-electrode needle |
Micro-electrode tip | |
Depth of Needle | 0.5 - 3 mm (Adjustable) |
Display | 10.4 inch LCD |
Switch | Foot Switch |
Dimension(mm) | 280mm(W) x 505mm(L) x 1100mm(H) |
Weight | 20kg |
Electrical Requirements | AC/100-240 V, 50-60 Hz |
Pinxel Portable Microneedle Fractional RF Machine
Combine Microneedle RF & Fractional RF 2 system in one machine
Microneedle & Fractional RF
Korea Imported Stepping Motor
Adjustable Needle Length
Regardless of skin types
Available to treat both epidermis and dermis
FRACTIONAL RF:
Fractional RF delivers thermal energy to the treatment area more safely and effectively, allowing treatment regardless of skin type. The laser energy is mostly absorbed by melanin, especially in darker skin which contains a higher melanin content.
MICRONEEDLE RF:
For Micro Needle RF(invasive) treatments, Effective, direct thermal stimulation to remodel collagen with less epidermis damage. Micro Needle RF penetrates target area from epidermis to dermis without energy loss; stimulates and efficiently remodels disordered collagen.
1. Dedicate control of treatment depth ---0.5mm, 1mm and 1.5mm
2. Control of pulse time by 0.1second
3. Control of Pulse power by 1W
4. Use 36 micro needles as electrodes to reduce the pain during the treatment
5. Direct delivery of RF energy on the target Area
6. Continuous heating with non-insulated micro electrodes
Main Function | Acne scar, Skin Tightening and Whitening, Wrinkle Removal, Stretch Marks Removal |
Non-surgical Face Lifting | |
Face Treatment | Wrinkle Reduction |
Skin Tightening | |
Skin Rejuvenation (Whitening) | |
Body Treatment | Scars |
Stretch Marks removal |

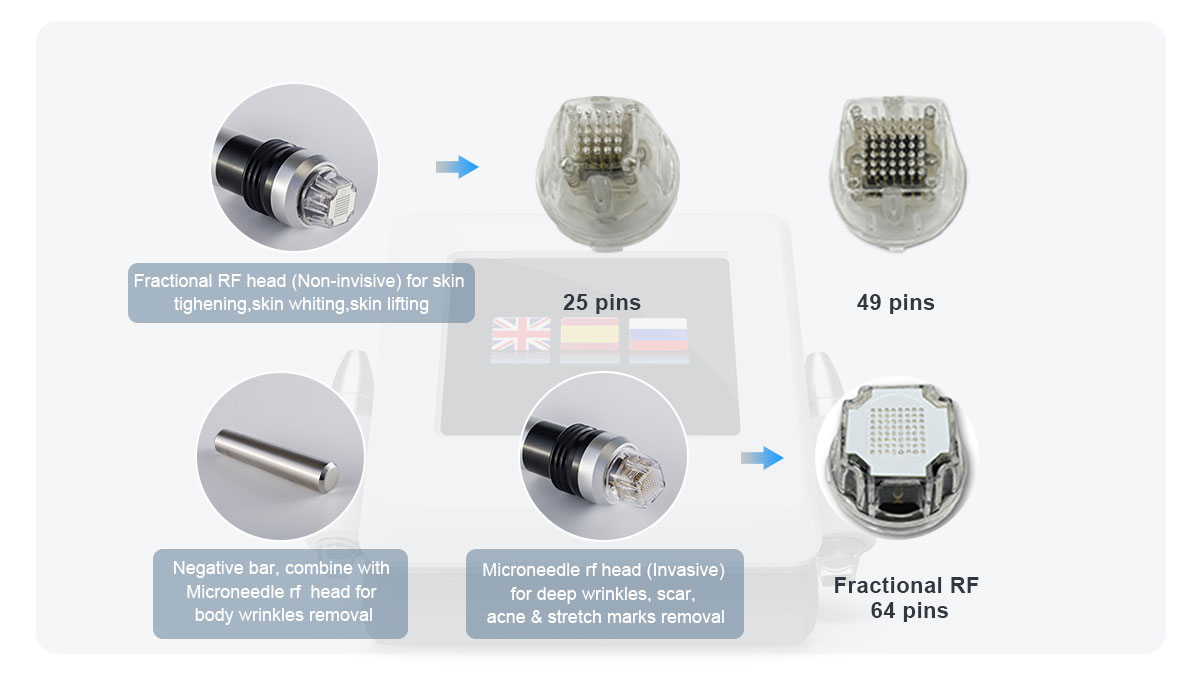

Micro needle rf head (Invasive) for deep wrinkles, scar, acne & stretch marks removal
Negative bar, combine with Microneedle rf head for body wrinkles removal
Fractional rf head (Non-invisive) for skin tighening, skin whiting, skin lifting
Microneedle RF
Two working modes:
1. Monopolar Mode combines negative bar to use
2. Biopolar 25 pins 49 pins
Fractional RF
One tip: 64 pins
