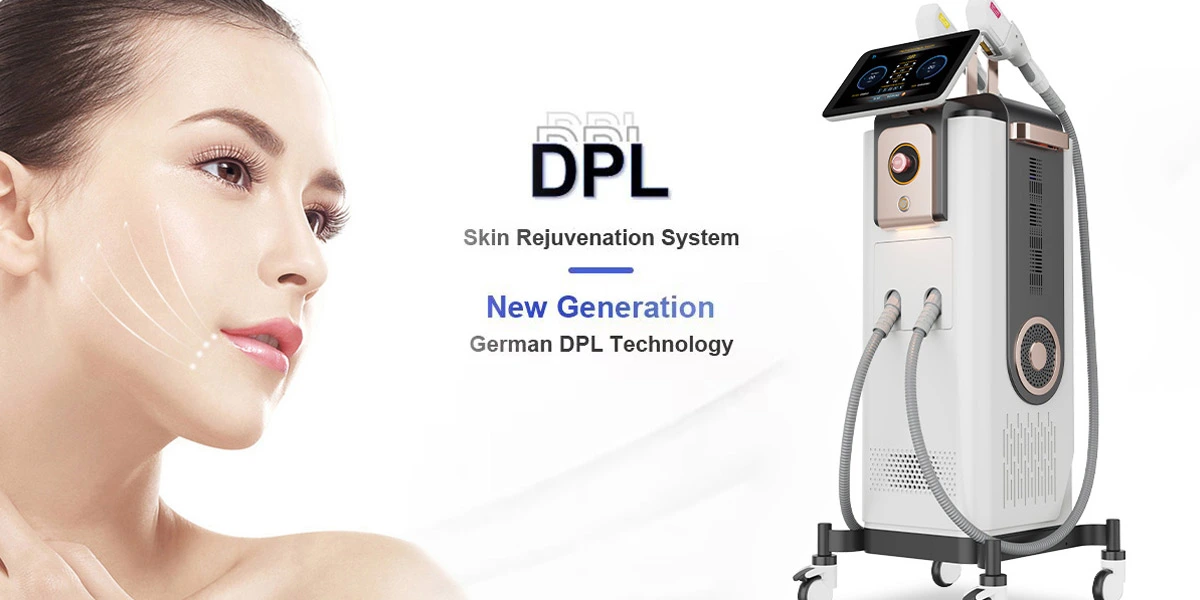

Introducing Sanhe Laser DPL Machine For Skin Rejuvenation Machine for skin rejuvenation, featuring five major technological advancements for efficient and precise treatment. Compared to IPL technology, DPL is superior for handling finer hair and offers adjustable parameter settings for various skin conditions. The versatile applications of this DPL machine include hair removal, skin rejuvenation, skin tightening, acne and pigment removal, and vascular lesion therapy, delivering outstanding results with enhanced comfort and efficacy.
Specification of SHR-950S | |
Wave Length | PR: 550-650nm VR: 500-600nm |
Optional: (HR: 650-950nm SR: 560-950nm AR 420-520nm ) | |
Fluence | 10-50J / cm2 SHR: 1-10J / cm2 |
Frequency | 1-10HZ |
RF power | 1-30W |
Input Power | 4000W |
Power Source | Pure Sapphire |
Lamp | German Imported lamp |
Spot Size | 10*40mm for(SR, VR, AR, PR) 15*50mm for HR |
Contact cooling temperature | Max -10℃ |
Cooling System | Built in water cooling + semi conductor cooling + air cooling |
LCD Screen | 10.4 inch true color touch screen control |
package size | 82*59*122cm |
Weight | 99kg |
The machine uses DPL (Dye Pulsed Light) precision skin rejuvenation technology that is photo skin rejuvenation (DPL), DPL machine refers to a new optical skin rejuvenation technology, different from traditional technology (such as IPL), The new technology can stimulate 100nm pulsed light which also contains the absorption peaks of melanin and oxygen and hemoglobin, allowing accurate concentration of effective therapeutic energy, thus quickly and efficiently solve the facial freckles and telangiectasia (red face) problems.
Superphotons Technology Advantages:
Five major technological innovations and reforms.
1.100nm delicate pulse light technology--Quickly And Efficiently.
2. Core of Light Imported from Germany--Xenon Lamp.
3. OPT power supply--Uniform and Stable.
4. Multiple wavelengths available for use on all skins--Five Handles for your choice, HR, SR, PR, VR, AR.
5. In-motion technology--Fast Mode with 10hz High Frequency.
DPL can handle new fine hair
After the energy reaches the dermis without any attenuation，only a lttle energy stays in the epidermis.
IPL can only handle coarse hair
The energy is concentrated in the shallow layer , and the thermal effect of the target tissue is low
Multiple wavelengths available for use on all skins Auto-identified 5 hanldes for your choice
Parameter setting principles:
1. If the skin is thick, dark yellow and rough, you can increase the pulse width and increase the energy density at the same time
2. If the skin is dark, the epidermis is thicker, and the pigmentation is pigmented, the pulse interval can be increased
3. If the skin is darker, the epidermis is thinner, and the skin is sensitive, the energy density can be set smaller
4. If treating parts with less subcutaneous tissue, the energy density can be appropriately reduced
5. As the number of operations increases, the energy density can be appropriately increased
6. The reaction is not obvious, the customer can tolerate it, and the energy density increases
1. Hair Removal
2. Skin Rejuvenation
3. Skin Tightening
4. Acne Removal
5. Pigment Removal
6. Vascular Lesion
Before and After:
1. The hair is long and black; you can ask the customer to shave it three days in advance, or you can cut it as short as one millimeter at that time, and absorb light through the black stubble, and conduct heat to the root of the hair. The white and tender fluff can be done directly without shaving, and some hairs will fall off automatically after a week.
2. When operating Sanhe Laser dpl skin rejuvenation, try to increase the energy as much as possible until the customer has a strong needling sensation and it is acceptable.
3. Walk six times as a whole, 4-6 times for coarse hair, and 6-7 times for fine hair
4. Insist on completing the course of treatment according to the interval cycle! Because the hair follicle recovery period is 21 days, and the hair growth cycle is about 28 days, all intervals are 21 to 28 days, and try not to exceed 30 days.
